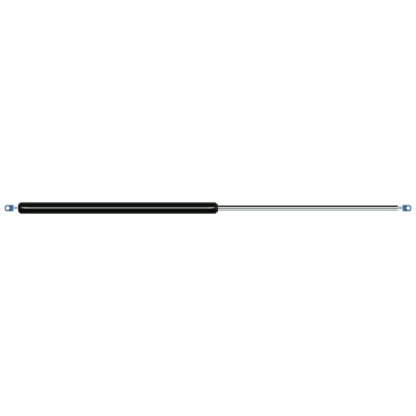

Replacement for Vapsint ATS F50 B01 1000 450 150-2500N

$80.49



Replacement gas spring for the Vapsint ATS F50 B01 1000 450 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Force

Choose an option150 Newton | 33.7 lbs.200 Newton | 45.0 lbs.250 Newton | 56.2 lbs.300 Newton | 67.4 lbs.350 Newton | 78.7 lbs.400 Newton | 89.9 lbs.450 Newton | 101.2 lbs.500 Newton | 112.4 lbs.550 Newton | 123.6 lbs.600 Newton | 134.9 lbs.650 Newton | 146.1 lbs.700 Newton | 157.4 lbs.750 Newton | 168.6 lbs.800 Newton | 179.8 lbs.850 Newton | 191.1 lbs.900 Newton | 202.3 lbs.950 Newton | 213.6 lbs.1000 Newton | 224.8 lbs.1050 Newton | 236.0 lbs.1100 Newton | 247.3 lbs.1150 Newton | 258.5 lbs.1200 Newton | 269.8 lbs.1250 Newton | 281.0 lbs.1300 Newton | 292.3 lbs.1350 Newton | 303.5 lbs.1400 Newton | 314.7 lbs.1450 Newton | 326.0 lbs.1500 Newton | 337.2 lbs.1550 Newton | 348.5 lbs.1600 Newton | 359.7 lbs.1650 Newton | 370.9 lbs.1700 Newton | 382.2 lbs.1750 Newton | 393.4 lbs.1800 Newton | 404.7 lbs.1850 Newton | 415.9 lbs.1900 Newton | 427.1 lbs.1950 Newton | 438.4 lbs.2000 Newton | 449.6 lbs.2050 Newton | 460.9 lbs.2100 Newton | 472.1 lbs.2150 Newton | 483.3 lbs.2200 Newton | 494.6 lbs.2250 Newton | 505.8 lbs.2300 Newton | 517.1 lbs.2350 Newton | 528.3 lbs.2400 Newton | 539.5 lbs.2450 Newton | 550.8 lbs.2500 Newton | 562.0 lbs.Clear

Replacement for Vapsint ATS F50 B01 1000 450 150-2500N quantity

Add to basket

This gas spring is also known as Brimotech 10520008.

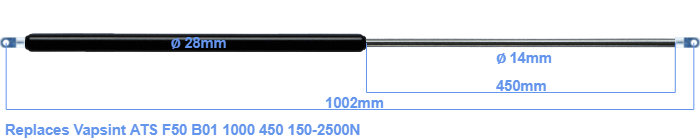

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod is 14 millimeter. The stroke of the gas spring is 450 millimeter. In total, the length is 1002 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 948 millimeter. This replacement gas spring has a force of 150-2500 Newton. This is not an original gas spring produced by Vapsint, but it can replace a Vapsint gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
