Replacement for Vapsint AMS R20 Z10 405 160 50-800N

$41.19



Replacement gas spring for the Vapsint AMS R20 Z10 405 160 50-800 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Vapsint AMS R20 Z10 405 160 50-800N quantity

Add to basket

This gas spring is also known as Brimotech 10320008.

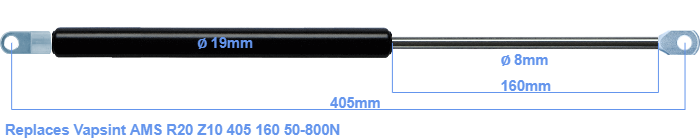

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke of the gas spring is 160 millimeter. In total, the length is 405 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 365 mm. The force of this replacement gas spring is 50-800 Newton. This is not an original gas spring produced by Vapsint, but it can replace a Vapsint gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
