Replacement for Vapsint 156.365.28 280N

$33.99



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Vapsint 156.365.28 280 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.365.28 280N quantity

Add to basket

This gas spring is also known as 156.365.28. RS3 - TZ2.

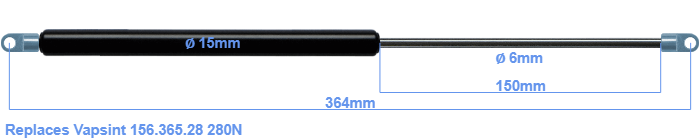

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke is 150 millimeter long. The total length of this replacement is exactly 364 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. This replacement gas spring has a force of 280 Newton. This gas spring can replace a Vapsint gas spring, but is not an orignal Vapsint one. This is a HAHN gas spring. The force (280 N) and dimensions are identical to the original.
