Replacement for Vapsint 156.225.8 80N

$33.30



Replacement gas spring for the Vapsint 156.225.8 80 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.8 80N quantity

Add to basket

This gas spring is also known as 156.225.8. RS3 - TZ2.

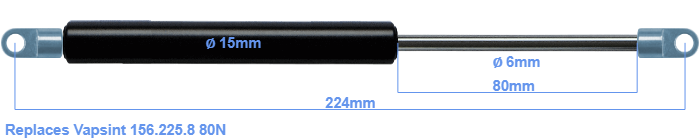

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 80 millimeter. The total length of this replacement is 224 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. The force of this replacement is 80 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions equal.
