Replacement for Vapsint 156.225.32 320N

$33.30



Replacement gas spring for the Vapsint 156.225.32 320 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.32 320N quantity

Add to basket

This gas spring is also known as 156.225.32. RS3 - TZ2.

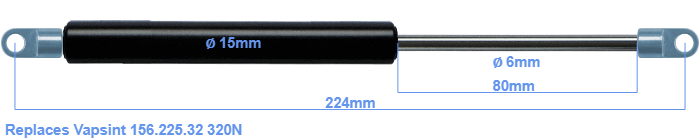

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The rod (the chrome part) is 80 mm long. The total length of this replacement gas spring is 224 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. This gas spring (156.225.32) has a force of 320 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
