Replacement for Vapsint 156.225.30 300N

$33.30



Replacement gas spring for the Vapsint 156.225.30 300 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.30 300N quantity

Add to basket

This gas spring is also known as 156.225.30. RS3 - TZ2.

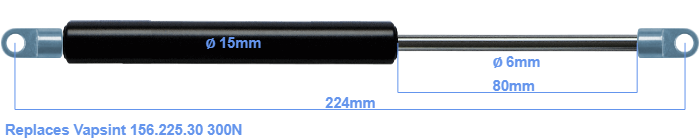

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 80 mm. In total, the length is 224 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). The force of this replacement gas spring is 300 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
