Replacement for Vapsint 156.225.25 250N

$33.30



Replacement gas spring for the Vapsint 156.225.25 250 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.25 250N quantity

Add to basket

This gas spring is also known as 156.225.25. RS3 - TZ2.

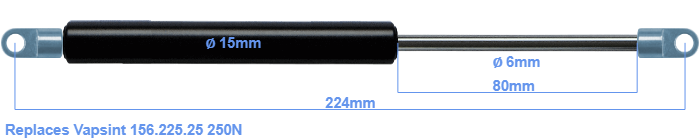

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 80 mm. In total, the length is 224 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. This replacement gas spring (156.225.25) has a force of 250 Newton (N). Attention: this is not an official Vapsint gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
