Replacement for Vapsint 156.225.24 240N

$33.30



Replacement gas spring for the Vapsint 156.225.24 240 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.24 240N quantity

Add to basket

This gas spring is also known as 156.225.24. RS3 - TZ2.

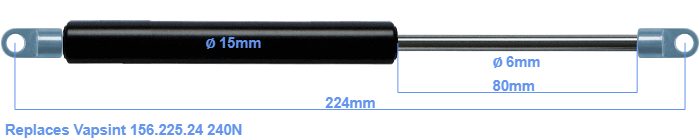

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 80 mm. The total length of this gas strut is 224 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. This gas spring (156.225.24) has a force of 240 Newton. This is not an official Vapsint gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The force (240 N) and dimensions are identical to the original.
