Replacement for Vapsint 156.225.22 220N

$33.30



Replacement gas spring for the Vapsint 156.225.22 220 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.225.22 220N quantity

Add to basket

This gas spring is also known as 156.225.22. RS3 - TZ2.

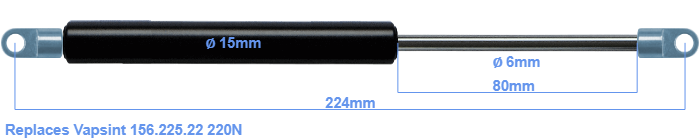

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The chrome part is called the rod. It has a length of 80 mm. The total length of this replacement gas spring is 224 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. This replacement gas spring has a force of 220 Newton. This is not an original gas spring produced by Vapsint, but it can replace a Vapsint gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
