$33.10
Out of Stock until approximately 12/3/2024.
Replacement gas spring for the Vapsint 156.185.8 80 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as 156.185.8. RS3 - TZ2.

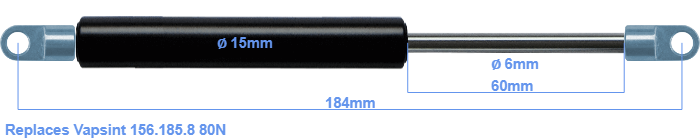

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke is 60 millimeter long. The total length of this replacement is exactly 184 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). This replacement gas spring (156.185.8) has a force of 80 Newton (N). This gas spring can replace a Vapsint gas spring, but is not an orignal Vapsint one. This gas spring was produced by Stabilus subsidiary HAHN. The force (80 N) and dimensions are identical to the original.
