Replacement for Vapsint 156.185.6 60N

$33.10



Out of Stock until approximately 12/3/2024.

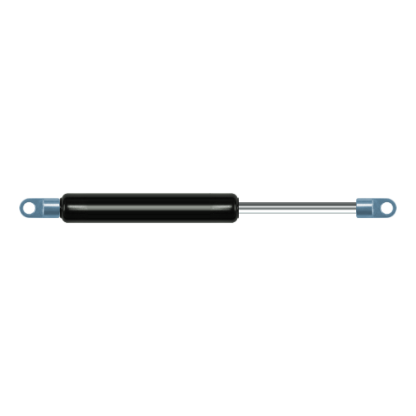

Replacement gas spring for the Vapsint 156.185.6 60 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.185.6 60N quantity

Add to basket

This gas spring is also known as 156.185.6. RS3 - TZ2.

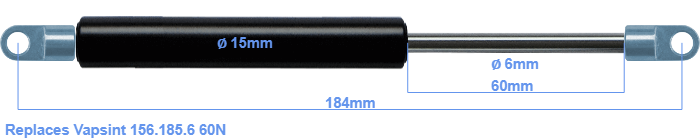

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is exactly 184 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). This gas spring (156.185.6) has a force of 60 Newton. Attention: this is not an official Vapsint gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
