Replacement for Vapsint 156.185.12 120N

$33.10



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Vapsint 156.185.12 120 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Vapsint 156.185.12 120N quantity

Add to basket

This gas spring is also known as 156.185.12. RS3 - TZ2.

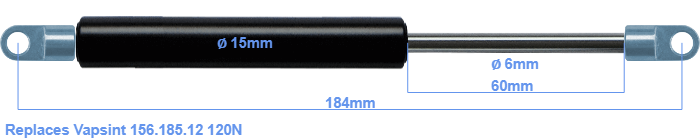

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is exactly 184 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. The force of this replacement is 120 Newton. Attention: this is not an official Vapsint gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
