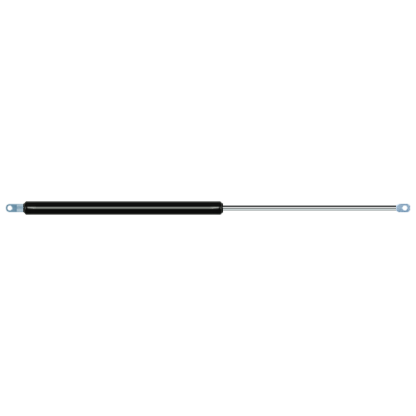

Replacement for Titgemeyer GETO Lift 605 089 1000N

$43.28



Replacement gas spring for the Titgemeyer GETO Lift 605 089 1000 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 089 1000N quantity

Add to basket

This gas spring is also known as 605089000.

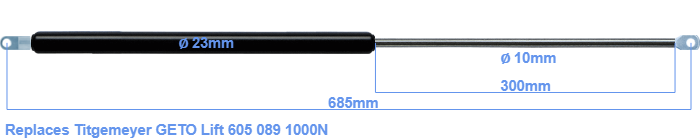

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The stroke is 300 millimeter long. The total length of this replacement gas spring is 685 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 1000 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
