Replacement for Titgemeyer GETO Lift 605 085 500N

$43.28



Replacement gas spring for the Titgemeyer GETO Lift 605 085 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 085 500N quantity

Add to basket

This gas spring is also known as 605085000.

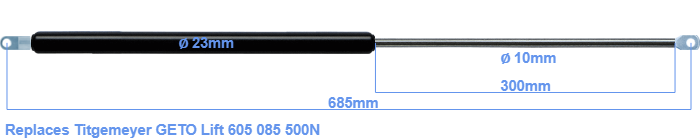

The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The rod (the chrome part) is 300 mm long. In total, the length is 685 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 645 millimeter. This replacement gas spring has a force of 500 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. This a gas spring with the brand HAHN. The force (500 N) and dimensions are nearly identical to the original.
