Replacement for Titgemeyer GETO Lift 605 070 1150N

$41.79



Out of Stock until approximately 12/3/2024

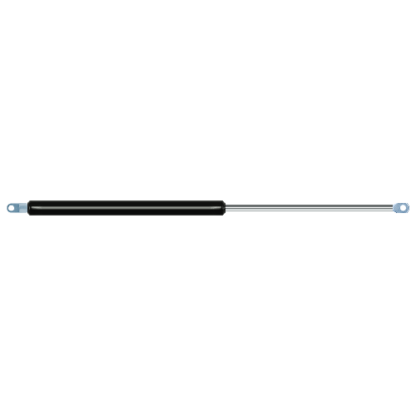

Replacement gas spring for the Titgemeyer GETO Lift 605 070 1150 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 070 1150N quantity

Add to basket

This gas spring is also known as 605070000.

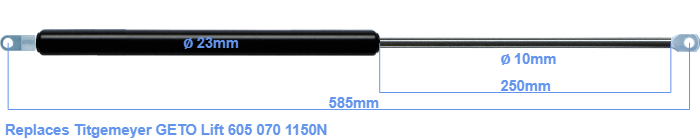

The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke is 250 millimeter long. The total length of this gas strut is 585 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 1150 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are nearly equal.
