Replacement for Titgemeyer GETO Lift 605 063 250N

$41.79



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Titgemeyer GETO Lift 605 063 250 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 063 250N quantity

Add to basket

This gas spring is also known as 605063000.

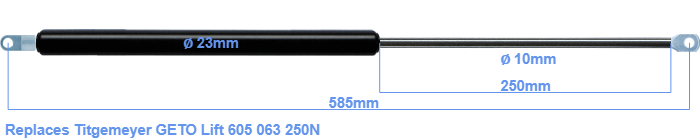

The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement gas spring is 585 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 250 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions close to equal.
