Replacement for Titgemeyer GETO Lift 605 049 1000N

$40.29



Replacement gas spring for the Titgemeyer GETO Lift 605 049 1000 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 049 1000N quantity

Add to basket

This gas spring is also known as 605049000.

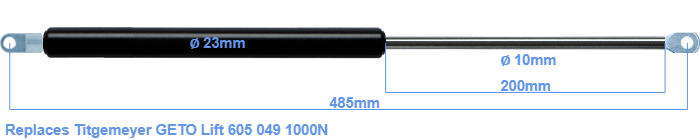

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The chrome part is called the rod. It has a length of 200 mm. The total length of this replacement gas spring is 485 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 1000 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (1000 N) and dimensions are almost identical to the original.
