Replacement for Titgemeyer GETO Lift 605 030 1150N

$38.78



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Titgemeyer GETO Lift 605 030 1150 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 030 1150N quantity

Add to basket

This gas spring is also known as 605030000.

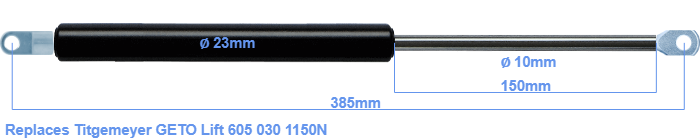

The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The stroke of the gas spring is 150 millimeter. The total length of this replacement is 385 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. The force of this replacement is 1150 Newton. This is not an original gas spring produced by Titgemeyer GETO Lift, but it can replace a Titgemeyer GETO Lift gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions close to equal.
