Replacement for Titgemeyer GETO Lift 605 029 1000N

$38.78



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Titgemeyer GETO Lift 605 029 1000 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 029 1000N quantity

Add to basket

This gas spring is also known as 605029000.

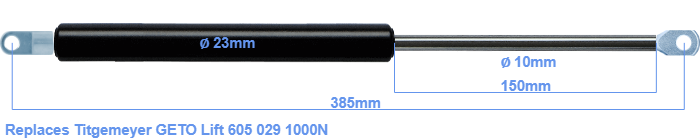

The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The chrome part is called the rod. It has a length of 150 mm. The total length of this replacement is 385 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). This replacement gas spring (605 029) has a force of 1000 Newton (N). This is not an original gas spring produced by Titgemeyer GETO Lift, but it can replace a Titgemeyer GETO Lift gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
