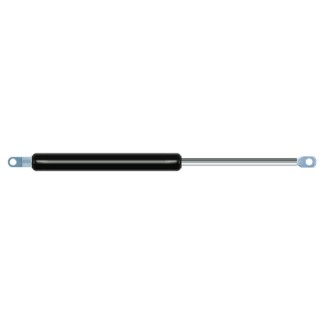

Replacement for Titgemeyer GETO Lift 605 027 750N

$38.78



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Titgemeyer GETO Lift 605 027 750 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 027 750N quantity

Add to basket

This gas spring is also known as 605027000.

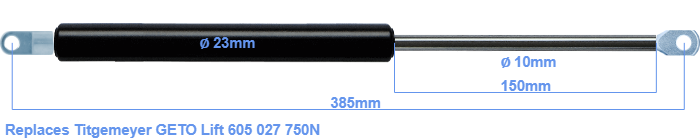

The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The rod (the chrome part) is 150 mm long. The total length of this replacement is exactly 385 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). This replacement gas spring (605 027) has a force of 750 Newton (N). This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
