Replacement for Titgemeyer GETO Lift 605 005 500N

$36.29

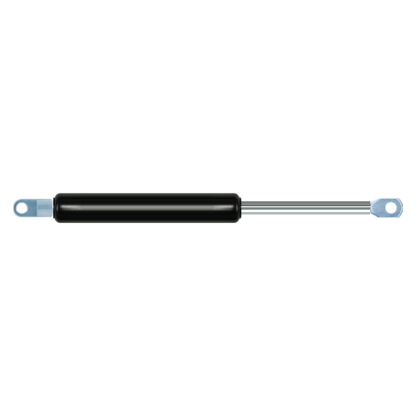

Replacement gas spring for the Titgemeyer GETO Lift 605 005 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 005 500N quantity

Add to basket

This gas spring is also known as 605005000.

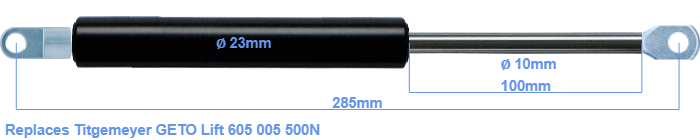

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 100 mm. In total, the length is 285 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. The force of this replacement gas spring is 500 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are close to equal.
