Replacement for Titgemeyer GETO Lift 605 003 250N

$36.29

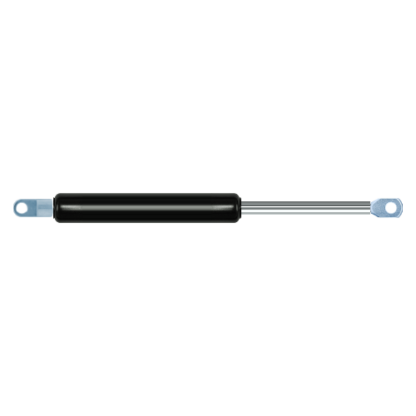

Replacement gas spring for the Titgemeyer GETO Lift 605 003 250 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 003 250N quantity

Add to basket

This gas spring is also known as 605003000.

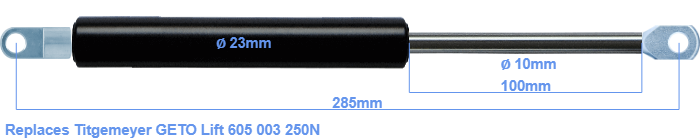

The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The stroke of the gas spring is 100 millimeter. In total, the length is 285 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. The force of this replacement is 250 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. This a gas spring with the brand HAHN. The force (250 N) and dimensions are nearly identical to the original.
