Replacement for Titgemeyer GETO Lift 603 992 500N

$36.29

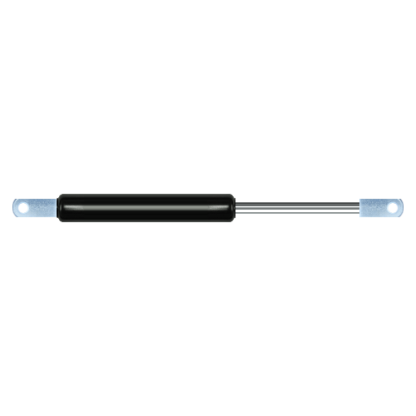

Replacement gas spring for the Titgemeyer GETO Lift 603 992 500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 12mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 603 992 500N quantity

Add to basket

This gas spring is also known as 603992000.



The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke of the gas spring is 100 millimeter. The total length of this replacement is 299 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). The force of this replacement gas spring is 500 Newton. This is not an official Titgemeyer GETO Lift gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
