$41.12

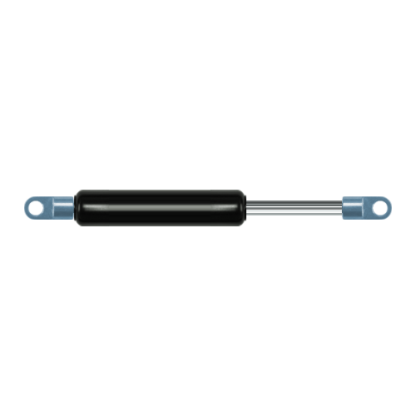

Replacement gas spring for the Stobo 4100008- 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator.
The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke is 40 millimeter long. The total length of this replacement gas spring is 144 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This replacement gas spring has a force of 200 Newton. This is not an original gas spring from Stobo, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (200 N) and dimensions are nearly identical to the original.
