Replacement for Stabilus Lift-O-Mat 9329DA 0100N

$36.36



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 9329DA 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 9329DA 0100N quantity

Add to basket

This gas spring is also known as CA9329DA.

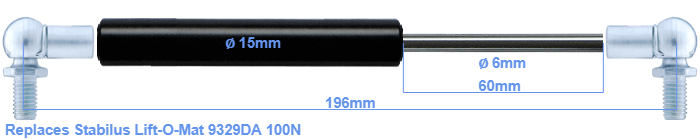

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod totals 6 mm. The stroke of the gas spring is 60 millimeter. The total length of this gas strut is 196 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). This gas spring (9329DA) has a force of 100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are equal.
