Replacement for Stabilus Lift-O-Mat 8674DJ 0400N

$37.02



Replacement gas spring for the Stabilus Lift-O-Mat 8674DJ 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 8674DJ 0400N quantity

Add to basket

This gas spring is also known as CA8674DJ.

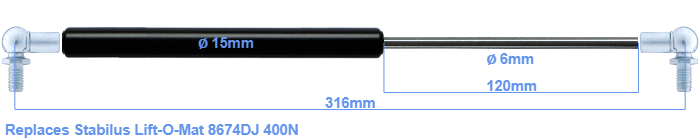

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 120 millimeter. The total length of this replacement is 316 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement is 400 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
