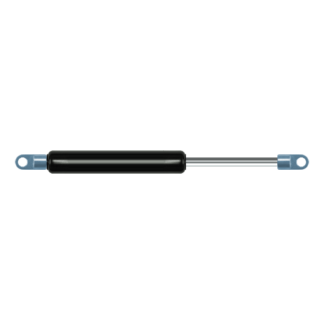

Replacement for Stabilus Lift-O-Mat 8605TJ 0400N

$33.10



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 8605TJ 0400N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 8605TJ 0400N quantity

Add to basket

This gas spring is also known as Salice Lift-O-Mat 8605TJ , CA8605TJ.

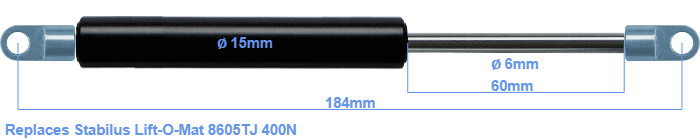

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The rod (the chrome part) is 60 mm long. The total length of this replacement gas spring is 184 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. This replacement gas spring (8605TJ) has a force of 400 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions close to equal.
