Replacement for Stabilus Lift-O-Mat 8604TO 0375N

$33.10



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 8604TO 0375N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 8604TO 0375N quantity

Add to basket

This gas spring is also known as Salice Lift-O-Mat 8604TO, CA8604TO.

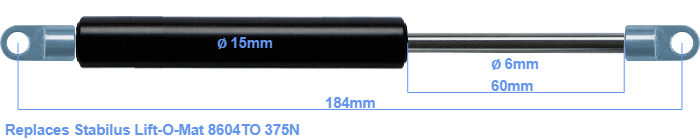

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 60 mm long. The total length of this replacement is exactly 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. This replacement gas spring has a force of 375 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
