Replacement for Stabilus Lift-O-Mat 760005 0300N

$38.65



Replacement gas spring for the Stabilus Lift-O-Mat 760005 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 760005 0300N quantity

Add to basket

This gas spring is also known as CA760005.

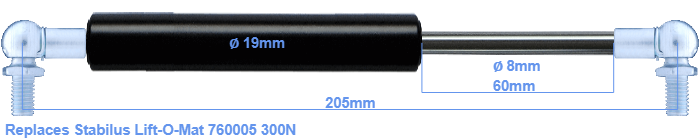

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is 205 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 165 mm. The force of this replacement gas spring is 300 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are nearly equal.
