Replacement for Stabilus Lift-O-Mat 752908 0250N

$48.16



Replacement gas spring for the Stabilus Lift-O-Mat 752908 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 752908 0250N quantity

Add to basket

This gas spring is also known as CA752908.

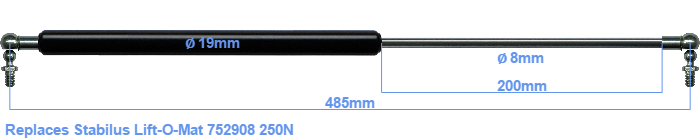

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke is 200 millimeter long. The total length of this replacement is 485 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. The force of this replacement is 250 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
