Replacement for Stabilus Lift-O-Mat 752851 0500N

$46.79



Replacement gas spring for the Stabilus Lift-O-Mat 752851 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 752851 0500N quantity

Add to basket

This gas spring is also known as CA752851.

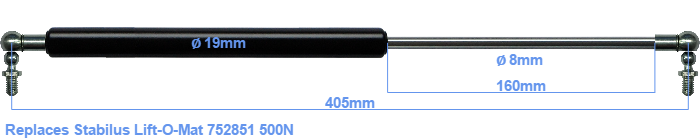

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The rod (the chrome part) is 160 mm long. The total length of this replacement gas spring is 405 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 365 mm. This replacement gas spring (752851) has a force of 500 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (500 N) and dimensions are identical to the original.
