Replacement for Stabilus Lift-O-Mat 752800 0600N

$42.59



Replacement gas spring for the Stabilus Lift-O-Mat 752800 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 752800 0600N quantity

Add to basket

This gas spring is also known as CA752800.

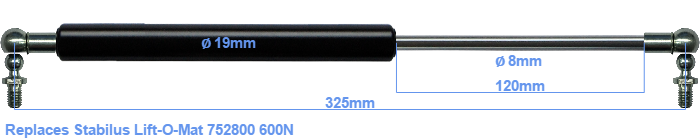

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The rod (the chrome part) is 120 mm long. The total length of this gas strut is 325 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 285 mm. This replacement gas spring (752800) has a force of 600 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
