Replacement for Stabilus Lift-O-Mat 752738 0500N

$41.74



Replacement gas spring for the Stabilus Lift-O-Mat 752738 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 752738 0500N quantity

Add to basket

This gas spring is also known as CA752738.

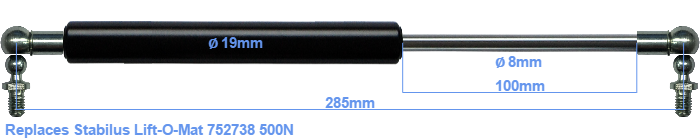

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 100 mm. The total length of this replacement is 285 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. This replacement gas spring has a force of 500 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions equal.
