Replacement for Stabilus Lift-O-Mat 709492 0400N

$41.74



Replacement gas spring for the Stabilus Lift-O-Mat 709492 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 709492 0400N quantity

Add to basket

This gas spring is also known as CA709492.

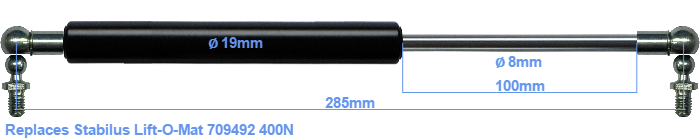

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 100 mm. The total length of this replacement gas spring is 285 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. The force of this replacement gas spring is 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. The force (400 N) and dimensions are identical to the original.
