Replacement for Stabilus Lift-O-Mat 6545IZ 0350N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 6545IZ 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 6545IZ 0350N quantity

Add to basket

This gas spring is also known as CA6545IZ.

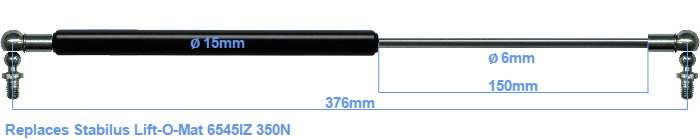

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 150 mm. In total, the length is 376 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This replacement gas spring has a force of 350 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are equal.
