Replacement for Stabilus Lift-O-Mat 6545ID 0300N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 6545ID 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 6545ID 0300N quantity

Add to basket

This gas spring is also known as CA6545ID.

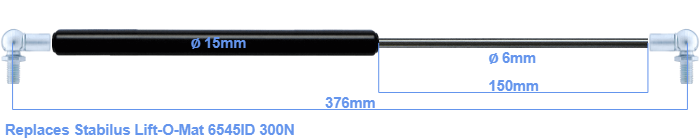

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The rod (the chrome part) is 150 mm long. The total length of this gas strut is 376 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. The force of this replacement gas spring is 300 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are equal.
