Replacement for Stabilus Lift-O-Mat 6517IG 0400N

$36.79



Replacement gas spring for the Stabilus Lift-O-Mat 6517IG 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 6517IG 0400N quantity

Add to basket

This gas spring is also known as CA6517IG.

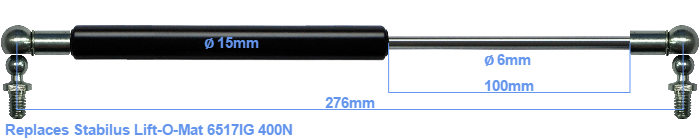

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement is 276 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 232 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
