Replacement for Stabilus Lift-O-Mat 6467IK 0050N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 6467IK 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 6467IK 0050N quantity

Add to basket

This gas spring is also known as CA6467IK.

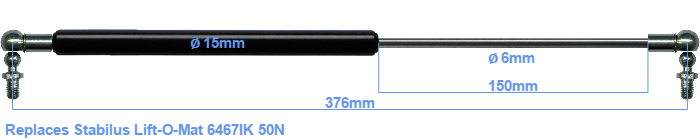

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this gas strut is 376 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 332 mm. This replacement gas spring has a force of 50 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The force (50 N) and dimensions are identical to the original.
