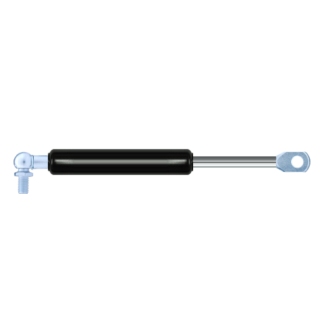

Replacement for Stabilus Lift-O-Mat 591955 0200N

$34.54

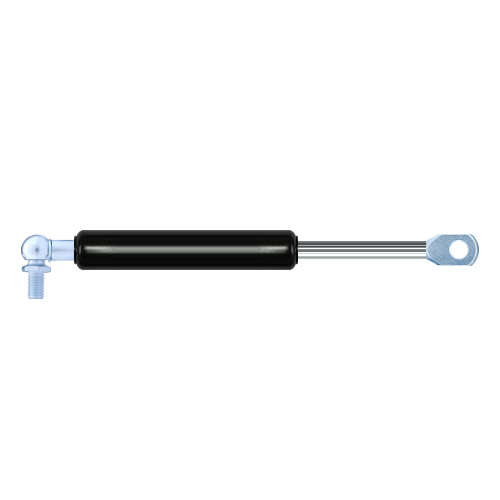

Replacement gas spring for the Stabilus Lift-O-Mat 591955 0200N. Mounting part tube: This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 591955 0200N quantity

Add to basket

This gas spring is also known as CA591955.



The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 60 millimeter. The total length of this replacement is 199 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 165 mm. This replacement gas spring has a force of 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
