Replacement for Stabilus Lift-O-Mat 586302 0340N

$45.54



Replacement gas spring for the Stabilus Lift-O-Mat 586302 0340N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 586302 0340N quantity

Add to basket

This gas spring is also known as CA586302.

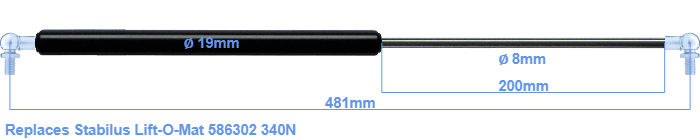

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke is 200 millimeter long. The total length of this replacement is exactly 481 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. The force of this replacement is 340 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
