$46.60



Out of Stock until approximately 1/16/2025

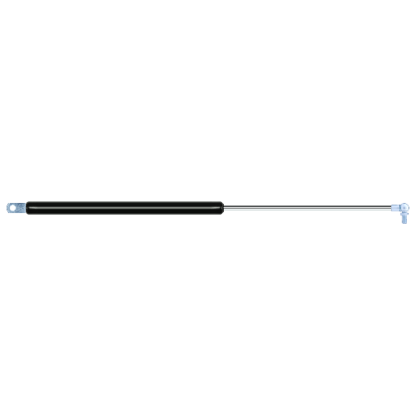

Replacement gas spring for the Stabilus Lift-O-Mat 5698LX 0330N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


  • View this gas spring in our configurator.
    This gas spring is also known as CA5698LX.
    Stabilus Lift-O-Mat 5698LX
    AR19WG20
    elbow ball removal

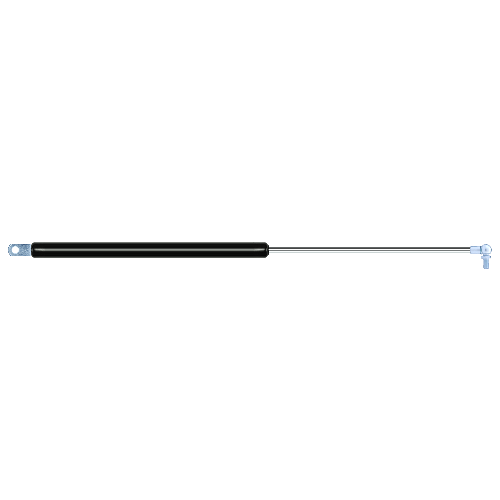

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 250 mm. The total length of this replacement is exactly 584 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This replacement gas spring has a force of 330 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
