Replacement for Stabilus Lift-O-Mat 5084DP 0350N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 5084DP 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 5084DP 0350N quantity

Add to basket

This gas spring is also known as CA5084DP.

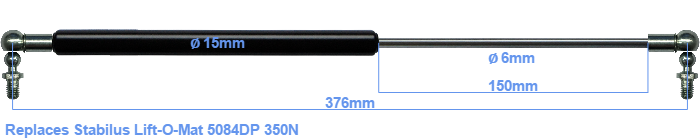

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 150 mm. The total length of this replacement is 376 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This replacement gas spring has a force of 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions equal.
