Replacement for Stabilus Lift-O-Mat 5075DQ 0100N

$37.25



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Stabilus Lift-O-Mat 5075DQ 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 5075DQ 0100N quantity

Add to basket

This gas spring is also known as CA5075DQ.

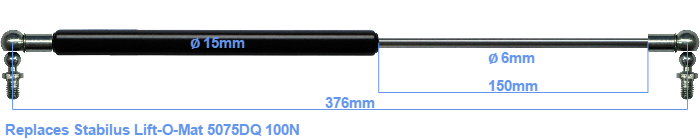

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 150 mm long. The total length of this replacement gas spring is 376 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). The force of this replacement gas spring is 100 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
