Replacement for Stabilus Lift-O-Mat 5025DT 0050N

$37.02



Replacement gas spring for the Stabilus Lift-O-Mat 5025DT 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 5025DT 0050N quantity

Add to basket

This gas spring is also known as CA5025DT.

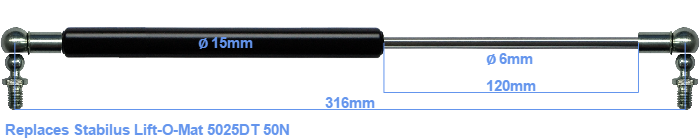

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 120 millimeter long. In total, the length is 316 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 272 mm. This gas spring (5025DT) has a force of 50 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
