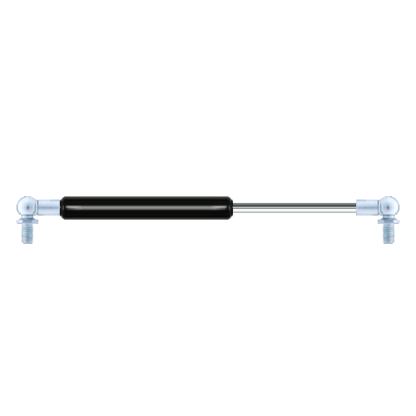

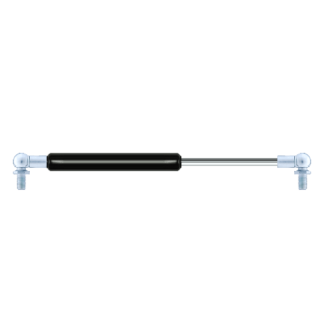

Replacement for Stabilus Lift-O-Mat 4928DD 0400N

$36.56



Replacement gas spring for the Stabilus Lift-O-Mat 4928DD 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 4928DD 0400N quantity

Add to basket

This gas spring is also known as CA4928DD.



The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The stroke is 80 millimeter long. The total length of this replacement is 236 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. This replacement gas spring (4928DD) has a force of 400 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are equal.
