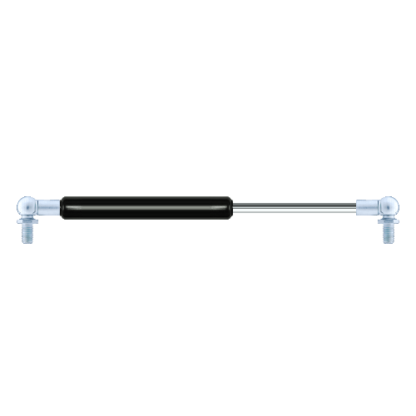

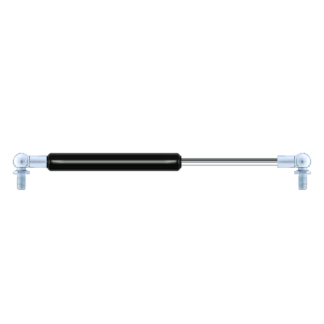

Replacement for Stabilus Lift-O-Mat 4919DE 0150N



$36.56

Low stock

Replacement gas spring for the Stabilus Lift-O-Mat 4919DE 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA4919DE.
Stabilus Lift-O-Mat 4919DE
WX22
elbow ball removal

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke of the gas spring is 80 millimeter. The total length of this replacement gas spring is 236 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This replacement gas spring (4919DE) has a force of 150 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
