Replacement for Stabilus Lift-O-Mat 4675NX 0100N

$46.79



Replacement gas spring for the Stabilus Lift-O-Mat 4675NX 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 4675NX 0100N quantity

Add to basket

This gas spring is also known as CA4675NX.

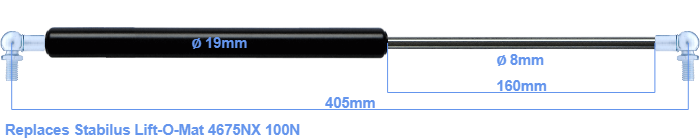

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke is 160 millimeter long. In total, the length is 405 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). This gas spring (4675NX) has a force of 100 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
