$33.99
Out of Stock until approximately 12/3/2024.

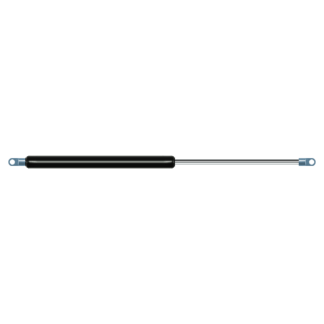

Replacement gas spring for the Stabilus Lift-O-Mat 4669PB 0150N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as CA4669PB.

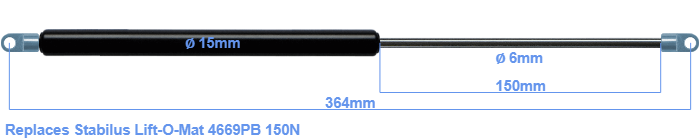

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke of the gas spring is 150 millimeter. The total length of this gas strut is 364 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This gas spring (4669PB) has a force of 150 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are almost equal.
