Replacement for Stabilus Lift-O-Mat 447609 0100N

$40.89



Replacement gas spring for the Stabilus Lift-O-Mat 447609 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 447609 0100N quantity

Add to basket

This gas spring is also known as CA447609.

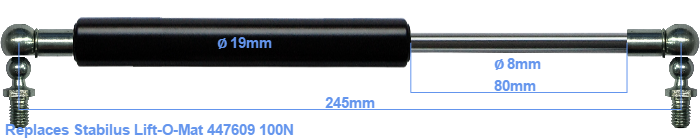

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The rod (the chrome part) is 80 mm long. In total, the length is 245 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 205 mm. This replacement gas spring has a force of 100 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. The force (100 N) and dimensions are identical to the original.
