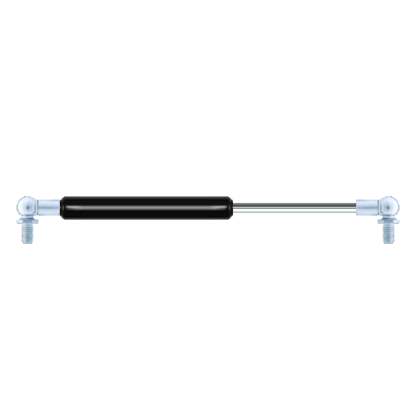

Replacement for Stabilus Lift-O-Mat 4276IM 0050N

$36.56



Replacement gas spring for the Stabilus Lift-O-Mat 4276IM 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 4276IM 0050N quantity

Add to basket

This gas spring is also known as CA4276IM.

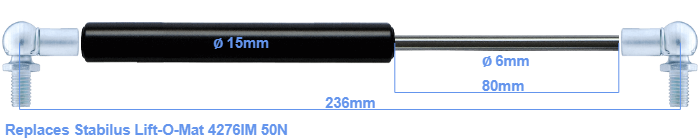

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 80 millimeter long. The total length of this replacement gas spring is 236 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. The force of this replacement gas spring is 50 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are equal.
